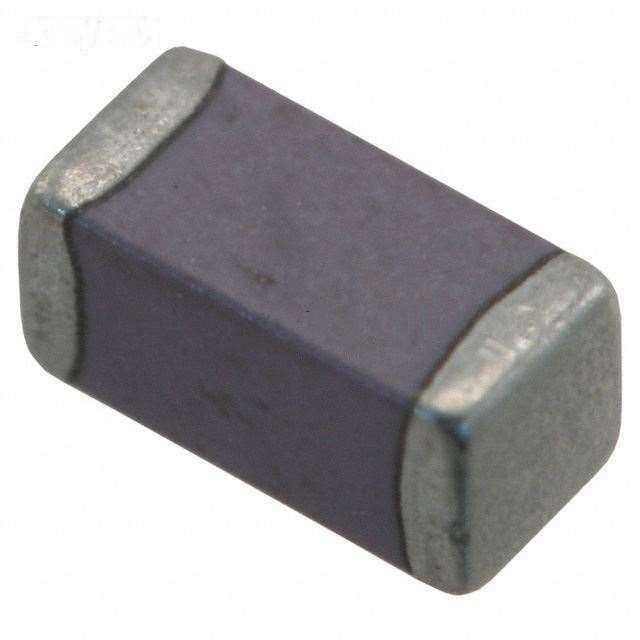

| Manufacturer Part Number: | 501R18W223KV4E |
|---|---|
| Manufacturer: | Johanson Dielectrics Inc. |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 701010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.022µF 500V Ceramic Capacitor X7R 1206 (3216 Metric) 0.125" L x 0.062" W (3.17mm x 1.57mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 501R18W223KV4E Datasheet |
| Internal Part Number | 898-501R18W223KV4E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MLCC Basics High Voltage PCB Design for Arc Prevention | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | High Voltage | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | Johanson Dielectrics Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 0.022µF | |
| Tolerance | ±10% | |
| Voltage - Rated | 500V | |
| Temperature Coefficient | X7R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 1206 (3216 Metric) | |
| Size / Dimension | 0.125" L x 0.062" W (3.17mm x 1.57mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.067" (1.70mm) | |
| Lead Spacing | - | |
| Features | High Voltage | |
| Lead Style | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 501R18W223KV4E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
501R18W223KV4E is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 501R18W223KV4E is new and unused, you can buy 501R18W223KV4E Johanson Dielectrics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 501R18W223KV4E.
