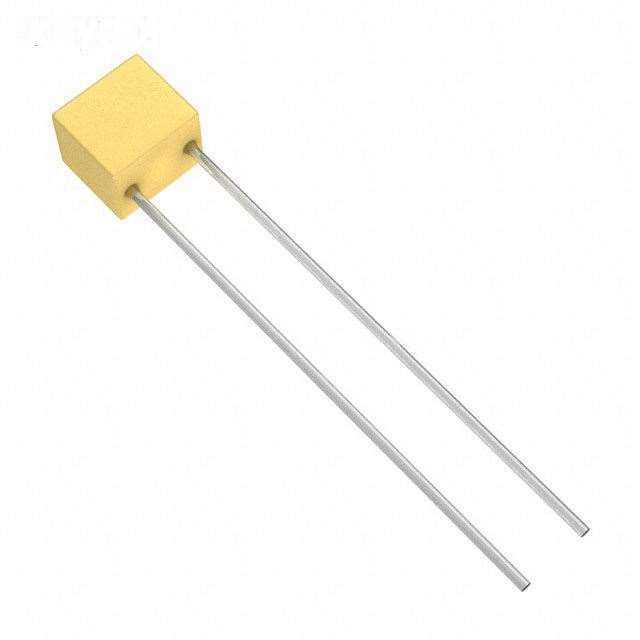

| Manufacturer Part Number: | 05HV10B103K |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10000pF 500V Ceramic Capacitor X7R Radial 0.250" L x 0.150" W (6.35mm x 3.81mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 05HV10B103K Datasheet |
| Internal Part Number | 898-05HV10B103K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Axial and Radial Leaded Multilayer Ceramic Capacitors | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | Kemet | |
| Series | HV | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Capacitance | 10000pF | |
| Tolerance | ±10% | |
| Voltage - Rated | 500V | |
| Temperature Coefficient | X7R | |
| Mounting Type | Through Hole | |
| Operating Temperature | -55°C ~ 200°C | |
| Applications | SMPS Filtering, Bypass, Decoupling | |
| Ratings | - | |
| Package / Case | Radial | |
| Size / Dimension | 0.250" L x 0.150" W (6.35mm x 3.81mm) | |
| Height - Seated (Max) | 0.220" (5.59mm) | |
| Thickness (Max) | - | |
| Lead Spacing | 0.170" (4.32mm) | |
| Features | High Voltage, High Temperature | |
| Lead Style | Straight | |
| Standard Package | 31 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 05HV10B103K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
05HV10B103K is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of 05HV10B103K is new and unused, you can buy 05HV10B103K Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 05HV10B103K.
