Manufacturer Part Number: | 102S43W103KV4E |
---|---|
Manufacturer: | Johanson Dielectrics Inc. |
Product Category: | Ceramic Capacitors |
Available Quantity: | 46010 Pieces |
Unit Price: | Quote by Email |

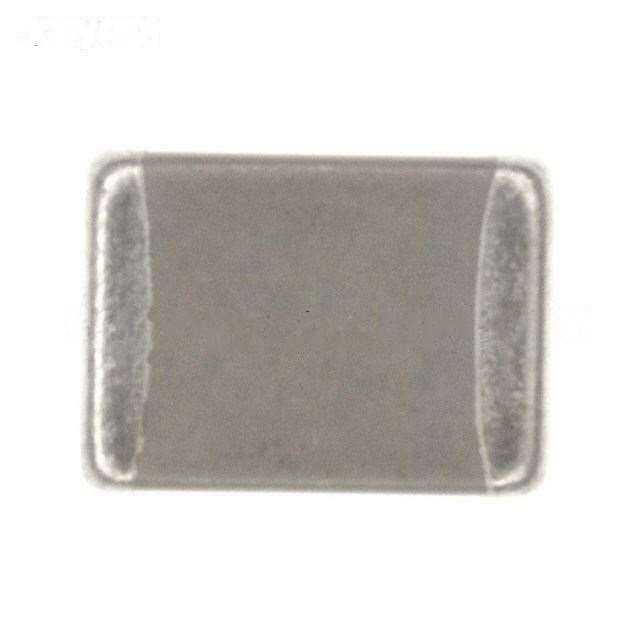

Description: | 10000pF 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric) 0.180" L x 0.125" W (4.57mm x 3.17mm) |
Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 102S43W103KV4E Datasheet |
Internal Part Number | 898-102S43W103KV4E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MLCC Basics High Voltage PCB Design for Arc Prevention | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | High Voltage | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | Johanson Dielectrics Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 10000pF | |
Tolerance | ±10% | |
Voltage - Rated | 1000V (1kV) | |
Temperature Coefficient | X7R | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 1812 (4532 Metric) | |
Size / Dimension | 0.180" L x 0.125" W (4.57mm x 3.17mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.110" (2.80mm) | |
Lead Spacing | - | |
Features | High Voltage | |
Lead Style | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 102S43W103KV4E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
102S43W103KV4E is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 102S43W103KV4E is new and unused, you can buy 102S43W103KV4E Johanson Dielectrics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 102S43W103KV4E.
