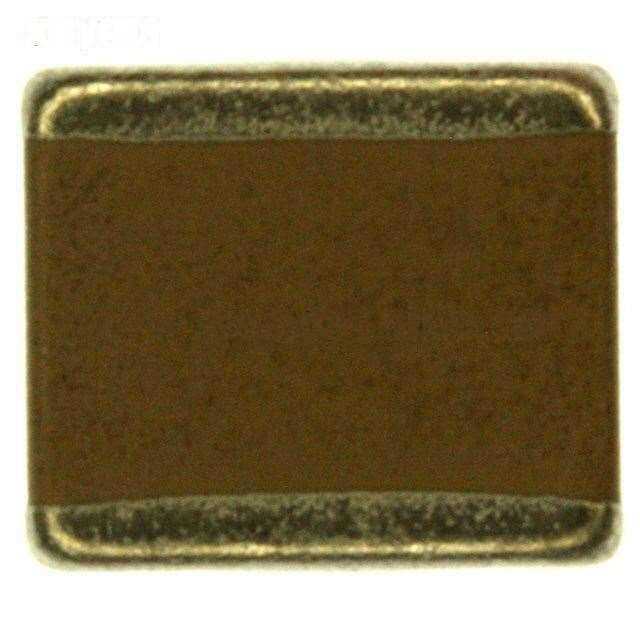

102S48W104KV4E

102S48W104KV4E
Manufacturer Part Number:102S48W104KV4E
Manufacturer:
Product Category:Ceramic Capacitors
Available Quantity:13010 Pieces
Unit Price:Quote by Email
Description:0.10µF 1000V (1kV) Ceramic Capacitor X7R 2225 (5763 Metric) 0.225" L x 0.255" W (5.72mm x 6.48mm)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 102S48W104KV4E Datasheet
102S48W104KV4E´s Parameters
Internal Part Number898-102S48W104KV4E
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesMLCC Basics
High Voltage PCB Design for Arc Prevention
EDA / CAD Models Download from Accelerated Designs
Online Catalog High Voltage
CategoryCapacitors
FamilyCeramic Capacitors
ManufacturerJohanson Dielectrics Inc.
Series-
PackagingTape & Reel (TR)
Part StatusActive
Capacitance0.10µF
Tolerance±10%
Voltage - Rated1000V (1kV)
Temperature CoefficientX7R
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsGeneral Purpose
Ratings-
Package / Case2225 (5763 Metric)
Size / Dimension0.225" L x 0.255" W (5.72mm x 6.48mm)
Height - Seated (Max)-
Thickness (Max)0.160" (4.06mm)
Lead Spacing-
FeaturesHigh Voltage
Lead Style-
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement Part102S48W104KV4E
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

102S48W104KV4E is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 102S48W104KV4E is new and unused, you can buy 102S48W104KV4E Johanson Dielectrics Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 102S48W104KV4E.
