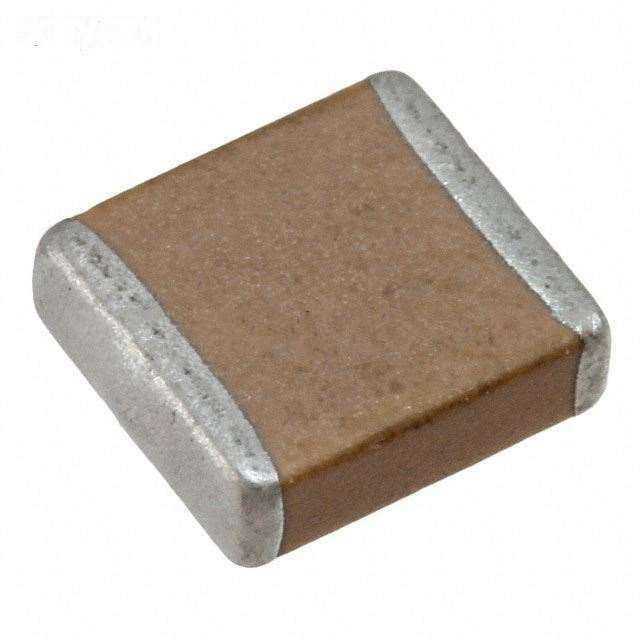

| Manufacturer Part Number: | 502S47W222KF3E-****-SC |
|---|---|
| Manufacturer: | Johanson Dielectrics Inc. |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2200pF 250VAC Ceramic Capacitor X7R 2220 (5750 Metric) 0.225" L x 0.200" W (5.72mm x 5.08mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 502S47W222KF3E-****-SC Datasheet |
| Internal Part Number | 898-502S47W222KF3E-****-SC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | Johanson Dielectrics Inc. | |
| Series | PolyTerm® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Quote Required | |
| Capacitance | 2200pF | |
| Tolerance | ±10% | |
| Voltage - Rated | 250VAC | |
| Temperature Coefficient | X7R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | Safety, Boardflex Sensitive | |
| Ratings | X1, Y2 | |
| Package / Case | 2220 (5750 Metric) | |
| Size / Dimension | 0.225" L x 0.200" W (5.72mm x 5.08mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.150" (3.81mm) | |
| Lead Spacing | - | |
| Features | Soft Termination | |
| Lead Style | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 502S47W222KF3E-****-SC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
502S47W222KF3E-****-SC is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 502S47W222KF3E-****-SC is new and unused, you can buy 502S47W222KF3E-****-SC Johanson Dielectrics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 502S47W222KF3E-****-SC.
