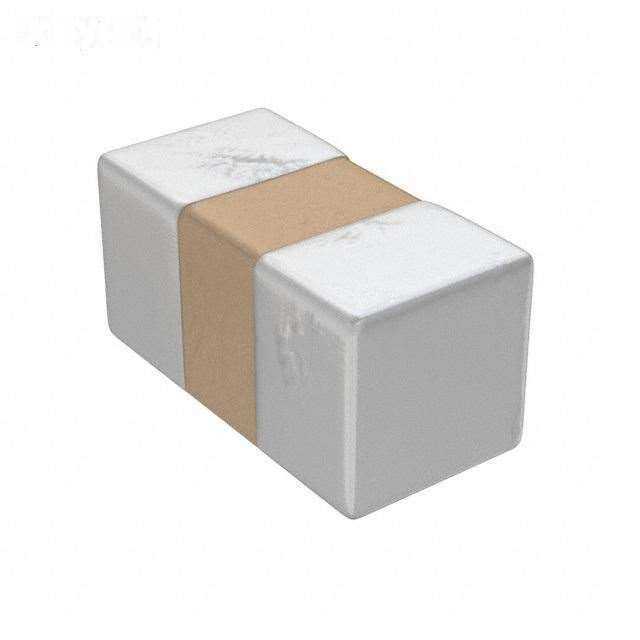

Manufacturer Part Number: | 550Z103PTT |
---|---|
Manufacturer: | American Technical Ceramics |
Product Category: | Ceramic Capacitors |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |
Description: | 10000pF 6.3V Ceramic Capacitor C0G, NP0 0201 (0603 Metric) 0.024" L x 0.012" W (0.60mm x 0.30mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 550Z103PTT Datasheet |
Internal Part Number | 898-550Z103PTT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | UBC™ 550Z Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | American Technical Ceramics | |
Series | UBC™ ATC 550Z | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 10000pF | |
Tolerance | 0%, +100% | |
Voltage - Rated | 6.3V | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | RF, Microwave, High Frequency | |
Ratings | - | |
Package / Case | 0201 (0603 Metric) | |
Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.013" (0.33mm) | |
Lead Spacing | - | |
Features | High Q, Low Loss | |
Lead Style | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 550Z103PTT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
550Z103PTT is in stock for immediate shipping now. We are the distributor of American Technical Ceramics all series components. The condition of 550Z103PTT is new and unused, you can buy 550Z103PTT American Technical Ceramics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 550Z103PTT.
