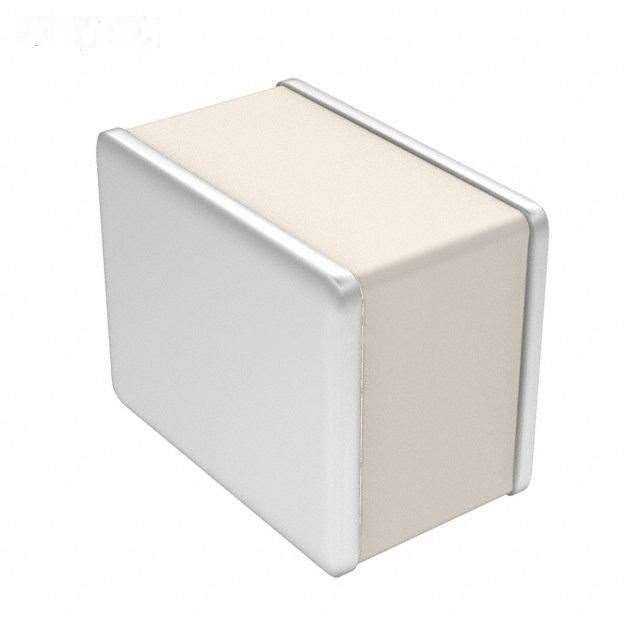

.jpg)
| Manufacturer Part Number: | 800R100JT500XT |
|---|---|
| Manufacturer: | American Technical Ceramics |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10pF 500V Ceramic Capacitor C0G, NP0 0709 (1823 Metric) 0.070" L x 0.090" W (1.78mm x 2.29mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 800R100JT500XT Datasheet |
| Internal Part Number | 898-800R100JT500XT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 800R Series MLCs | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | American Technical Ceramics | |
| Series | ATC 800R | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 10pF | |
| Tolerance | ±5% | |
| Voltage - Rated | 500V | |
| Temperature Coefficient | C0G, NP0 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | RF, Microwave, High Frequency | |
| Ratings | - | |
| Package / Case | 0709 (1823 Metric) | |
| Size / Dimension | 0.070" L x 0.090" W (1.78mm x 2.29mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.115" (2.92mm) | |
| Lead Spacing | - | |
| Features | High Q, Low Loss | |
| Lead Style | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 800R100JT500XT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
800R100JT500XT is in stock for immediate shipping now. We are the distributor of American Technical Ceramics all series components. The condition of 800R100JT500XT is new and unused, you can buy 800R100JT500XT American Technical Ceramics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 800R100JT500XT.
