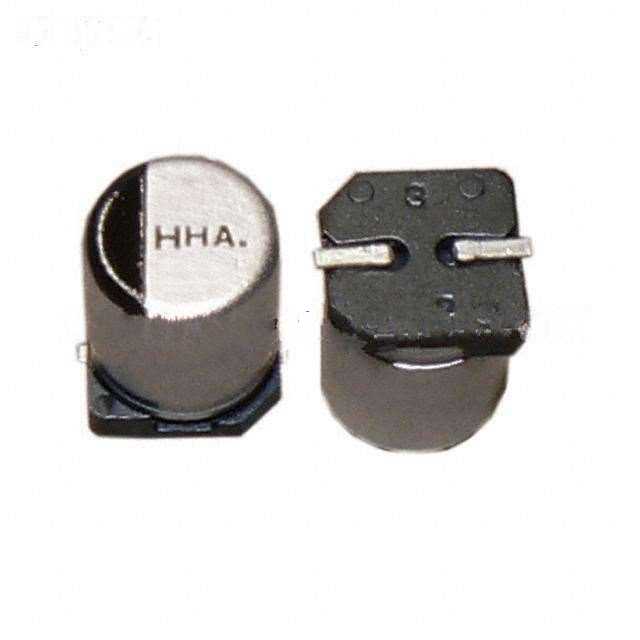

| Manufacturer Part Number: | AHA226M16B12B-F |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Aluminum Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µF 16V Aluminum Capacitors Radial, Can - SMD 19.6 Ohm @ 120Hz 1000 Hrs @ 105°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AHA226M16B12B-F Datasheet |
| Internal Part Number | 898-AHA226M16B12B-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Capacitors | |
| Family | Aluminum Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | AHA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 22µF | |
| Tolerance | ±20% | |
| Voltage Rating | 16V | |
| ESR (Equivalent Series Resistance) | 19.6 Ohm @ 120Hz | |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | |
| Operating Temperature | -55°C ~ 105°C | |
| Polarization | Polar | |
| Applications | General Purpose | |
| Ripple Current | 28mA @ 120Hz | |
| Impedance | - | |
| Lead Spacing | - | |
| Size / Dimension | 0.157" Dia (4.00mm) | |
| Height - Seated (Max) | 0.213" (5.40mm) | |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | |
| Mounting Type | Surface Mount | |
| Package / Case | Radial, Can - SMD | |
| Standard Package | 1,600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AHA226M16B12B-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AHA226M16B12B-F is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of AHA226M16B12B-F is new and unused, you can buy AHA226M16B12B-F Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AHA226M16B12B-F.
