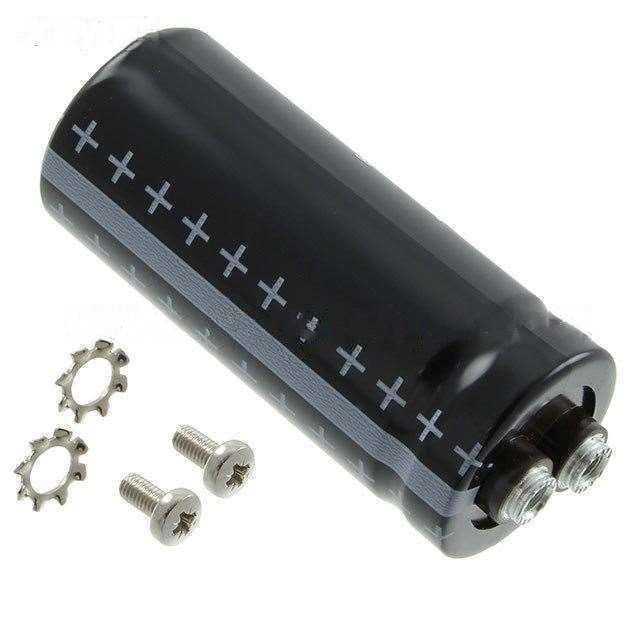

B41560A9228M

B41560A9228M
Manufacturer Part Number:B41560A9228M
Manufacturer:
Product Category:Aluminum Capacitors
Available Quantity:9097 Pieces
Unit Price:Quote by Email
Description:2200µF 100V Aluminum Capacitors Radial, Can - Screw Terminals 70 mOhm @ 100Hz 3000 Hrs @ 105°C
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: B41560A9228M Datasheet
B41560A9228M´s Parameters
Internal Part Number898-B41560A9228M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Design/SpecificationMaterial Change 27/Mar/2015
Online Catalog B41560-80 Series
CategoryCapacitors
FamilyAluminum Capacitors
ManufacturerEPCOS (TDK)
SeriesB41560
PackagingBulk
Part StatusActive
Capacitance2200µF
Tolerance±20%
Voltage Rating100V
ESR (Equivalent Series Resistance)70 mOhm @ 100Hz
Lifetime @ Temp.3000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
ApplicationsGeneral Purpose
Ripple Current4.7A @ 100Hz
Impedance77 mOhm
Lead Spacing0.500" (12.70mm)
Size / Dimension1.406" Dia (35.70mm)
Height - Seated (Max)3.217" (81.70mm)
Surface Mount Land Size-
Mounting TypeChassis Mount
Package / CaseRadial, Can - Screw Terminals
Standard Package 36
Weight0.001 KG
ApplicationEmail for details
Replacement PartB41560A9228M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

B41560A9228M is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B41560A9228M is new and unused, you can buy B41560A9228M EPCOS (TDK) with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for B41560A9228M.
