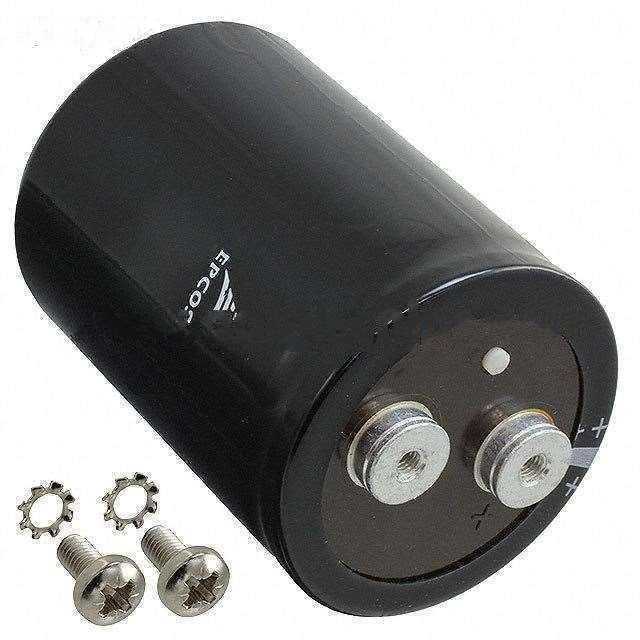

| Manufacturer Part Number: | B41560A9229M |
|---|---|
| Manufacturer: | EPCOS (TDK) |
| Product Category: | Aluminum Capacitors |
| Available Quantity: | 9059 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22000µF 100V Aluminum Capacitors Radial, Can - Screw Terminals 6 mOhm @ 100Hz 3000 Hrs @ 105°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | B41560A9229M Datasheet |
| Internal Part Number | 898-B41560A9229M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Material Change 27/Mar/2015 | |
| Online Catalog | B41560-80 Series | |
| Category | Capacitors | |
| Family | Aluminum Capacitors | |
| Manufacturer | EPCOS (TDK) | |
| Series | B41560 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 22000µF | |
| Tolerance | ±20% | |
| Voltage Rating | 100V | |
| ESR (Equivalent Series Resistance) | 6 mOhm @ 100Hz | |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | |
| Operating Temperature | -40°C ~ 105°C | |
| Polarization | Polar | |
| Applications | General Purpose | |
| Ripple Current | 17A @ 100Hz | |
| Impedance | 6 mOhm | |
| Lead Spacing | 1.248" (31.70mm) | |
| Size / Dimension | 3.028" Dia (76.90mm) | |
| Height - Seated (Max) | 4.201" (106.70mm) | |
| Surface Mount Land Size | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Radial, Can - Screw Terminals | |
| Standard Package | 16 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | B41560A9229M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
B41560A9229M is in stock for immediate shipping now. We are the distributor of EPCOS (TDK) all series components. The condition of B41560A9229M is new and unused, you can buy B41560A9229M EPCOS (TDK) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B41560A9229M.
