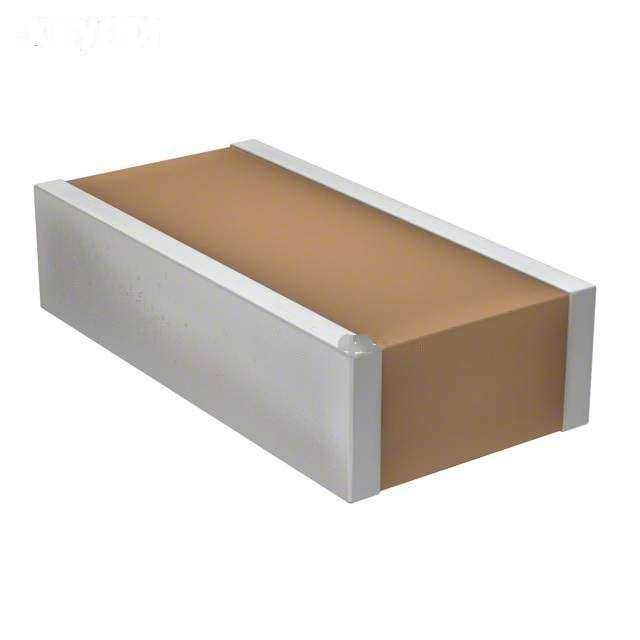

 W.jpg)
| Manufacturer Part Number: | C1632X5R1E224M070AC |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 0.22µF 25V Ceramic Capacitor X5R 0612 (1632 Metric) 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C1632X5R1E224M070AC Datasheet |
| Internal Part Number | 898-C1632X5R1E224M070AC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAT, CCV, and TVCL Design Tools C Series Reverse Geometry Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | C Series Reverse Geometry MLCCs | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, Low ESL | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 0.22µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 25V | |
| Temperature Coefficient | X5R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 85°C | |
| Applications | Bypass, Decoupling | |
| Ratings | - | |
| Package / Case | 0612 (1632 Metric) | |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.033" (0.85mm) | |
| Lead Spacing | - | |
| Features | Low ESL (Reverse Geometry) | |
| Lead Style | - | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C1632X5R1E224M070AC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C1632X5R1E224M070AC is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C1632X5R1E224M070AC is new and unused, you can buy C1632X5R1E224M070AC TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C1632X5R1E224M070AC.
