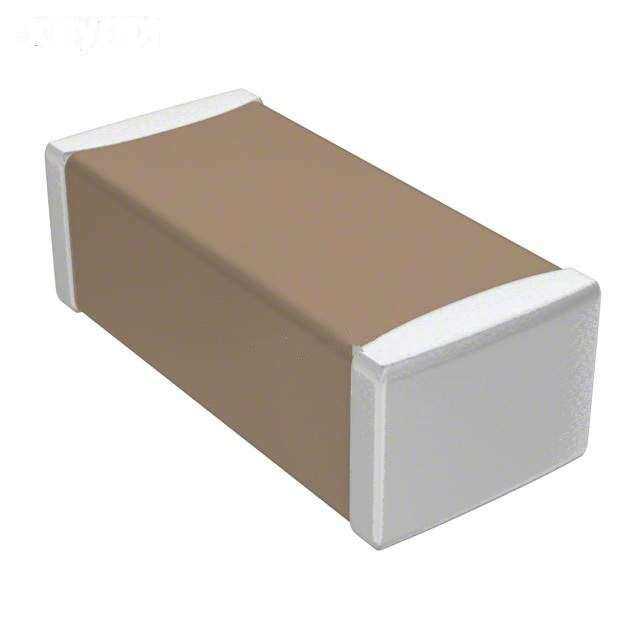

 15.jpg)
| Manufacturer Part Number: | C4520X7S3A472K160KA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4700pF 1000V (1kV) Ceramic Capacitor X7S 1808 (4520 Metric) 0.177" L x 0.079" W (4.50mm x 2.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4520X7S3A472K160KA Datasheet |
| Internal Part Number | 898-C4520X7S3A472K160KA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, High Voltage | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 4700pF | |
| Tolerance | ±10% | |
| Voltage - Rated | 1000V (1kV) | |
| Temperature Coefficient | X7S | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 1808 (4520 Metric) | |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.071" (1.80mm) | |
| Lead Spacing | - | |
| Features | High Voltage | |
| Lead Style | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4520X7S3A472K160KA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4520X7S3A472K160KA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C4520X7S3A472K160KA is new and unused, you can buy C4520X7S3A472K160KA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4520X7S3A472K160KA.
