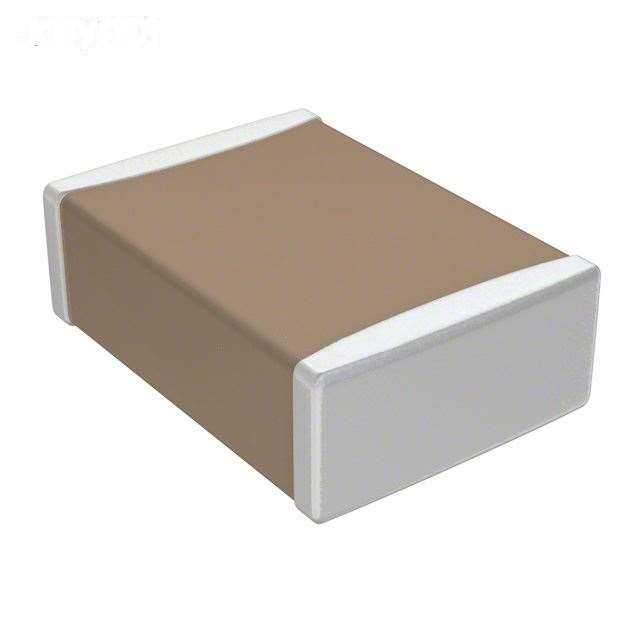

 14.jpg)
| Manufacturer Part Number: | C4532X7R3D222M130KE |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2200pF 2000V (2kV) Ceramic Capacitor X7R 1812 (4532 Metric) 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C4532X7R3D222M130KE Datasheet |
| Internal Part Number | 898-C4532X7R3D222M130KE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAT, CCV, and TVCL Design Tools C Series High Voltage Capacitors C Series Soft Termination Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | Soft Termination MLCC Capacitors | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, Soft Termination | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 2200pF | |
| Tolerance | ±20% | |
| Voltage - Rated | 2000V (2kV) | |
| Temperature Coefficient | X7R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | Boardflex Sensitive | |
| Ratings | - | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.057" (1.45mm) | |
| Lead Spacing | - | |
| Features | Soft Termination | |
| Lead Style | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C4532X7R3D222M130KE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C4532X7R3D222M130KE is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C4532X7R3D222M130KE is new and unused, you can buy C4532X7R3D222M130KE TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C4532X7R3D222M130KE.
