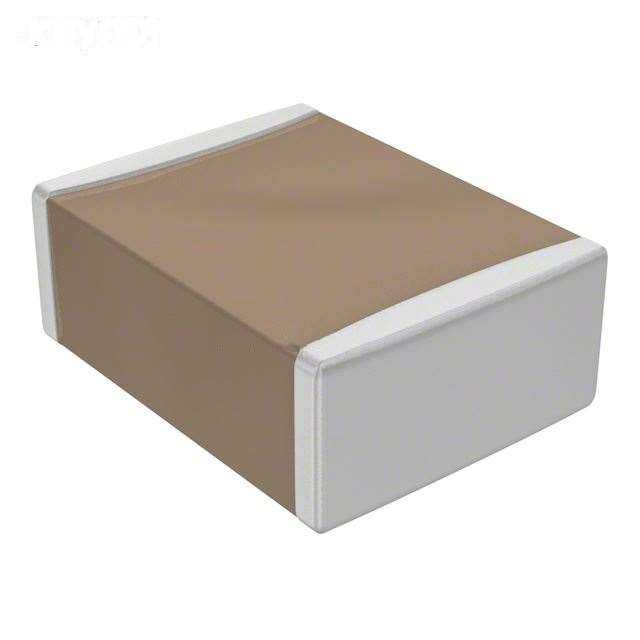

 25.jpg)
| Manufacturer Part Number: | C5750JB2A105M230KA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1µF 100V Ceramic Capacitor JB 2220 (5750 Metric) 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | C5750JB2A105M230KA Datasheet |
| Internal Part Number | 898-C5750JB2A105M230KA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | C-Series Mid Voltage MLCCs CH and JB Temperature Coefficient Capacitors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | C Series, Mid Voltage | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 1µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 100V | |
| Temperature Coefficient | JB | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -25°C ~ 85°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 2220 (5750 Metric) | |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.098" (2.50mm) | |
| Lead Spacing | - | |
| Features | - | |
| Lead Style | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | C5750JB2A105M230KA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
C5750JB2A105M230KA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of C5750JB2A105M230KA is new and unused, you can buy C5750JB2A105M230KA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for C5750JB2A105M230KA.
