Manufacturer Part Number: | CEU3E2X7R1H153M080AE |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 17010 Pieces |
Unit Price: | Quote by Email |

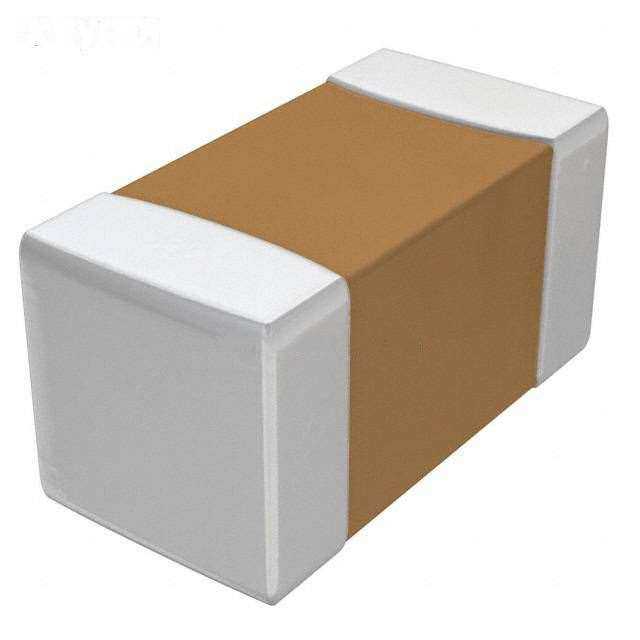

Description: | 0.015µF 50V Ceramic Capacitor X7R 0603 (1608 Metric) 0.063" L x 0.031" W (1.60mm x 0.80mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CEU3E2X7R1H153M080AE Datasheet |
Internal Part Number | 898-CEU3E2X7R1H153M080AE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CEU Series Serial Design Capacitor Family SEAT, CCV, and TVCL Design Tools C Series Soft Termination Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CEU Series Multilayer Ceramic Chip Capacitor | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CEU Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CEU | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.015µF | |
Tolerance | ±20% | |
Voltage - Rated | 50V | |
Temperature Coefficient | X7R | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Automotive, Boardflex Sensitive | |
Ratings | AEC-Q200 | |
Package / Case | 0603 (1608 Metric) | |
Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.037" (0.95mm) | |
Lead Spacing | - | |
Features | Soft Termination | |
Lead Style | - | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CEU3E2X7R1H153M080AE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CEU3E2X7R1H153M080AE is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CEU3E2X7R1H153M080AE is new and unused, you can buy CEU3E2X7R1H153M080AE TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CEU3E2X7R1H153M080AE.
