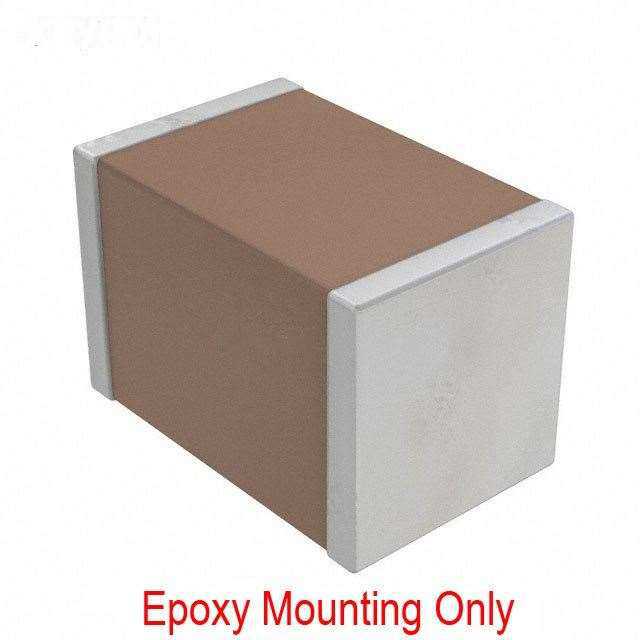

.jpg)
| Manufacturer Part Number: | CGA5L3X7R1C475K160AD |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4.7µF 16V Ceramic Capacitor X7R 1206 (3216 Metric) 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CGA5L3X7R1C475K160AD Datasheet |
| Internal Part Number | 898-CGA5L3X7R1C475K160AD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MLCC Conductive Epoxy FAQs | |
| Product Training Modules | CGA Series for Automotive Applications SEAT, CCV, and TVCL Design Tools C Series Conductive Epoxy Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | CGA Series MLCC Capacitors C Series Conductive Epoxy MLCC | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CGA Series, Epoxy Mounted | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | CGA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 4.7µF | |
| Tolerance | ±10% | |
| Voltage - Rated | 16V | |
| Temperature Coefficient | X7R | |
| Mounting Type | Surface Mount, MLCC, Epoxy | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | Automotive | |
| Ratings | AEC-Q200 | |
| Package / Case | 1206 (3216 Metric) | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.063" (1.60mm) | |
| Lead Spacing | - | |
| Features | Epoxy Mountable | |
| Lead Style | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CGA5L3X7R1C475K160AD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CGA5L3X7R1C475K160AD is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA5L3X7R1C475K160AD is new and unused, you can buy CGA5L3X7R1C475K160AD TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGA5L3X7R1C475K160AD.
