Manufacturer Part Number: | CGA9M1X7T2J334K200KC |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

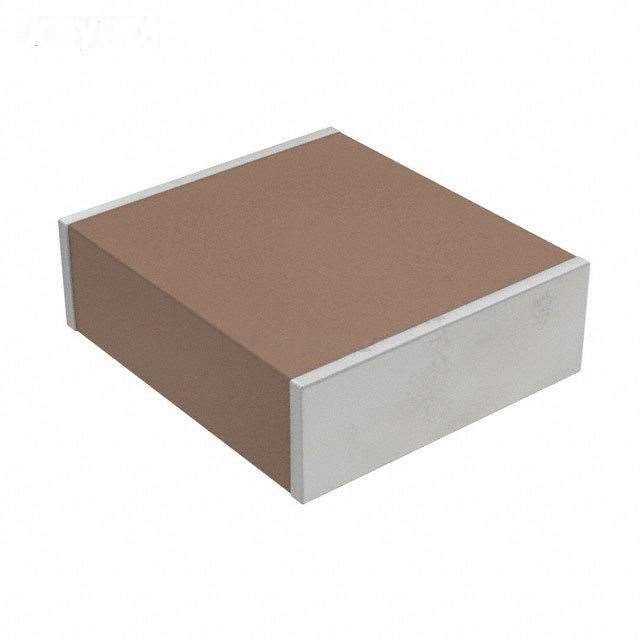

Description: | 0.33µF 630V Ceramic Capacitor X7T 2220 (5750 Metric) 0.224" L x 0.197" W (5.70mm x 5.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGA9M1X7T2J334K200KC Datasheet |
Internal Part Number | 898-CGA9M1X7T2J334K200KC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CGA Series for Automotive Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGA Series MLCC Capacitors | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGA Series, Automotive General, Mid and High Voltage | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.33µF | |
Tolerance | ±10% | |
Voltage - Rated | 630V | |
Temperature Coefficient | X7T | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Automotive | |
Ratings | AEC-Q200 | |
Package / Case | 2220 (5750 Metric) | |
Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.079" (2.00mm) | |
Lead Spacing | - | |
Features | - | |
Lead Style | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGA9M1X7T2J334K200KC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGA9M1X7T2J334K200KC is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA9M1X7T2J334K200KC is new and unused, you can buy CGA9M1X7T2J334K200KC TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGA9M1X7T2J334K200KC.
