Manufacturer Part Number: | CGA9P1X7T2J474K250KE |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |

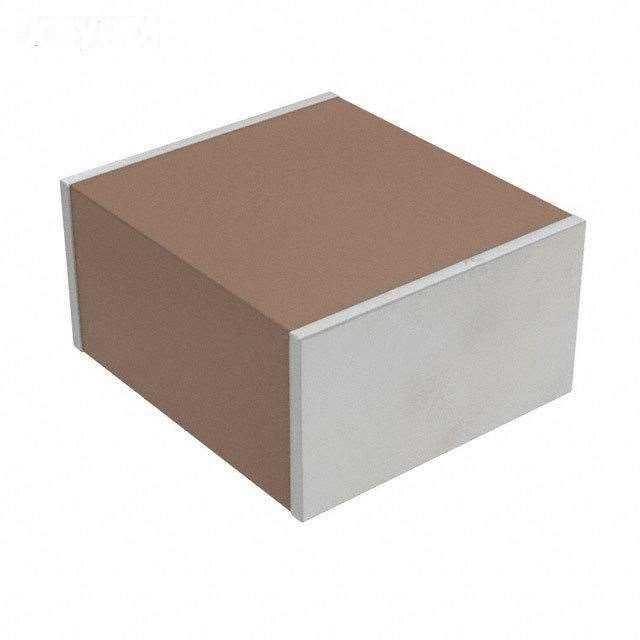

Description: | 0.47µF 630V Ceramic Capacitor X7T 2220 (5750 Metric) 0.224" L x 0.197" W (5.70mm x 5.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGA9P1X7T2J474K250KE Datasheet |
Internal Part Number | 898-CGA9P1X7T2J474K250KE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | CGA Series for Automotive Applications SEAT, CCV, and TVCL Design Tools C Series Soft Termination Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGA Series MLCC Capacitors Soft Termination MLCC Capacitors | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGA Series, Automotive Soft Termination | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.47µF | |
Tolerance | ±10% | |
Voltage - Rated | 630V | |
Temperature Coefficient | X7T | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Automotive, Boardflex Sensitive | |
Ratings | AEC-Q200 | |
Package / Case | 2220 (5750 Metric) | |
Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.110" (2.80mm) | |
Lead Spacing | - | |
Features | Soft Termination | |
Lead Style | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGA9P1X7T2J474K250KE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGA9P1X7T2J474K250KE is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGA9P1X7T2J474K250KE is new and unused, you can buy CGA9P1X7T2J474K250KE TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGA9P1X7T2J474K250KE.
