Manufacturer Part Number: | CGB2A1JB1C105K033BC |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |

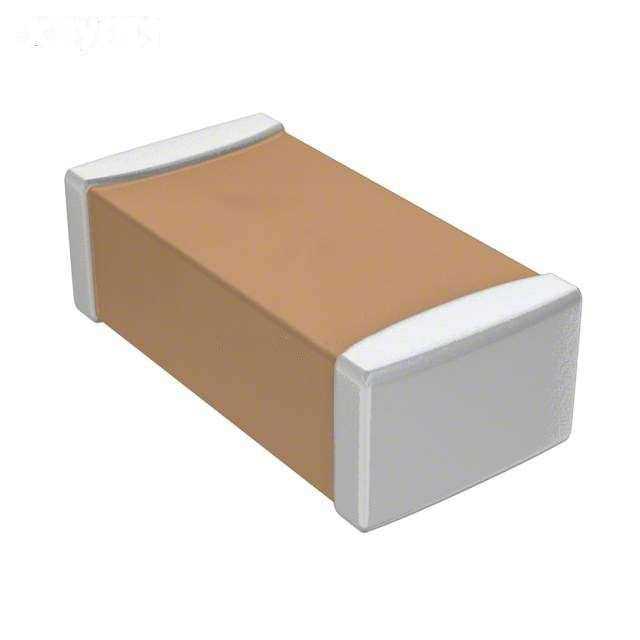

Description: | 1µF 16V Ceramic Capacitor JB 0402 (1005 Metric) 0.039" L x 0.020" W (1.00mm x 0.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CGB2A1JB1C105K033BC Datasheet |
Internal Part Number | 898-CGB2A1JB1C105K033BC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |
Featured Product | CGB Series Capacitors CH and JB Temperature Coefficient Capacitors | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CGB Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CGB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 1µF | |
Tolerance | ±10% | |
Voltage - Rated | 16V | |
Temperature Coefficient | JB | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -25°C ~ 85°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | 0402 (1005 Metric) | |
Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.013" (0.33mm) | |
Lead Spacing | - | |
Features | Low Profile | |
Lead Style | - | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CGB2A1JB1C105K033BC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CGB2A1JB1C105K033BC is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGB2A1JB1C105K033BC is new and unused, you can buy CGB2A1JB1C105K033BC TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGB2A1JB1C105K033BC.
