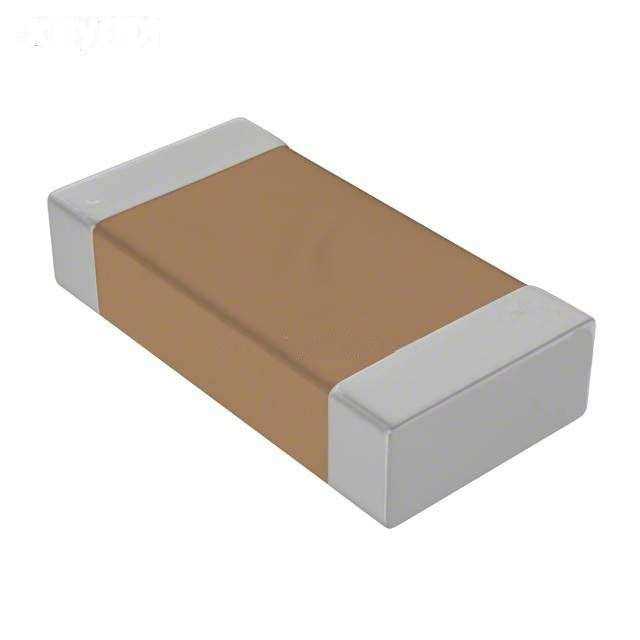

.jpg)
| Manufacturer Part Number: | CGJ5C2C0G1H103J060AA |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 33010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10000pF 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric) 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CGJ5C2C0G1H103J060AA Datasheet |
| Internal Part Number | 898-CGJ5C2C0G1H103J060AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | CGJ Series High Reliability SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial TDK CGJ Series MLCCs | Digi-Key Daily | |
| RoHS Information | RoHS Certificate-MLCC | |
| Featured Product | CGJ Series MLCCs | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CGJ Series | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | CGJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 10000pF | |
| Tolerance | ±5% | |
| Voltage - Rated | 50V | |
| Temperature Coefficient | C0G, NP0 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | High Reliability | |
| Ratings | COTS | |
| Package / Case | 1206 (3216 Metric) | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.028" (0.70mm) | |
| Lead Spacing | - | |
| Features | - | |
| Lead Style | - | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CGJ5C2C0G1H103J060AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CGJ5C2C0G1H103J060AA is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CGJ5C2C0G1H103J060AA is new and unused, you can buy CGJ5C2C0G1H103J060AA TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CGJ5C2C0G1H103J060AA.
