Manufacturer Part Number: | CLLE1AX7R0J474M050AC |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 0.47µF 6.3V Ceramic Capacitor X7R 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CLLE1AX7R0J474M050AC Datasheet |
Internal Part Number | 898-CLLE1AX7R0J474M050AC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Capacitance Replacement SEAT, CCV, and TVCL Design Tools CLL Series Capacitor Family Guide to Replacing an Electrolytic Capacitor with an MLCC | |
Video File | High Capacitance Capacitor Measurement Tutorial | |
RoHS Information | RoHS Certificate-MLCC | |

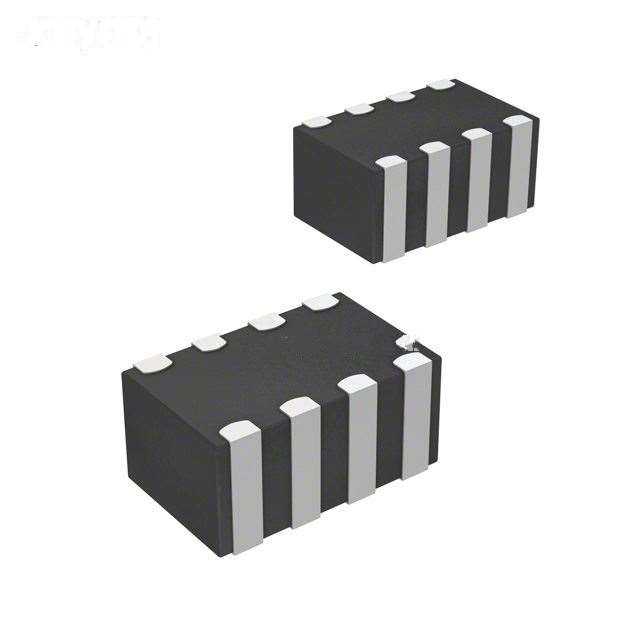

Featured Product | CLL Series Low Inductance MLCCs | |
PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | TDK Corporation | |
Series | CLL | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.47µF | |
Tolerance | ±20% | |
Voltage - Rated | 6.3V | |
Temperature Coefficient | X7R | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Bypass, Decoupling | |
Ratings | - | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.022" (0.55mm) | |
Lead Spacing | - | |
Features | Low ESL (Multi-Terminal) | |
Lead Style | - | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CLLE1AX7R0J474M050AC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CLLE1AX7R0J474M050AC is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CLLE1AX7R0J474M050AC is new and unused, you can buy CLLE1AX7R0J474M050AC TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CLLE1AX7R0J474M050AC.
