Manufacturer Part Number: | HVC0805Z1007JET |
---|---|
Manufacturer: | Ohmite |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 10510 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 1G OHM 5% 1/8W 0805 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HVC0805Z1007JET Datasheet |
Internal Part Number | 898-HVC0805Z1007JET | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |

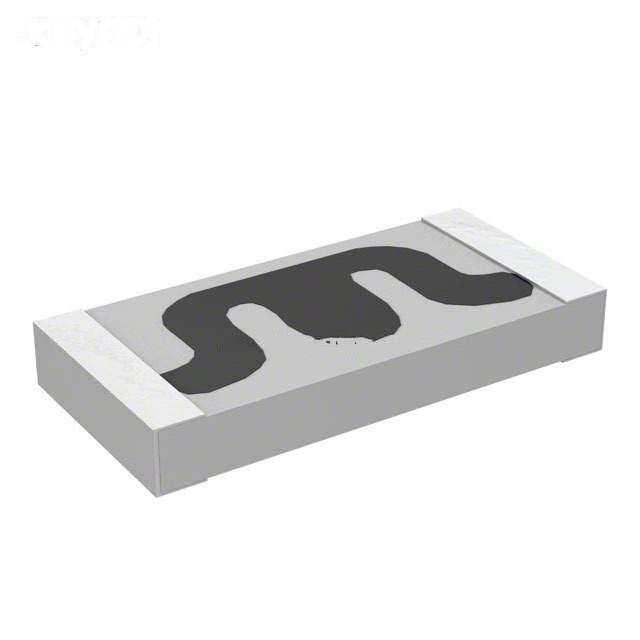

Featured Product | HVC Series | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | HVC Series | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Ohmite | |
Series | HVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 1G | |
Tolerance | ±5% | |
Power (Watts) | 0.125W, 1/8W | |
Composition | Thick Film | |
Features | High Voltage | |
Temperature Coefficient | ±250ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | 0805 (2012 Metric) | |
Supplier Device Package | 0805 | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height | 0.022" (0.55mm) | |
Number of Terminations | 2 | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HVC0805Z1007JET | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HVC0805Z1007JET is in stock for immediate shipping now. We are the distributor of Ohmite all series components. The condition of HVC0805Z1007JET is new and unused, you can buy HVC0805Z1007JET Ohmite with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HVC0805Z1007JET.
