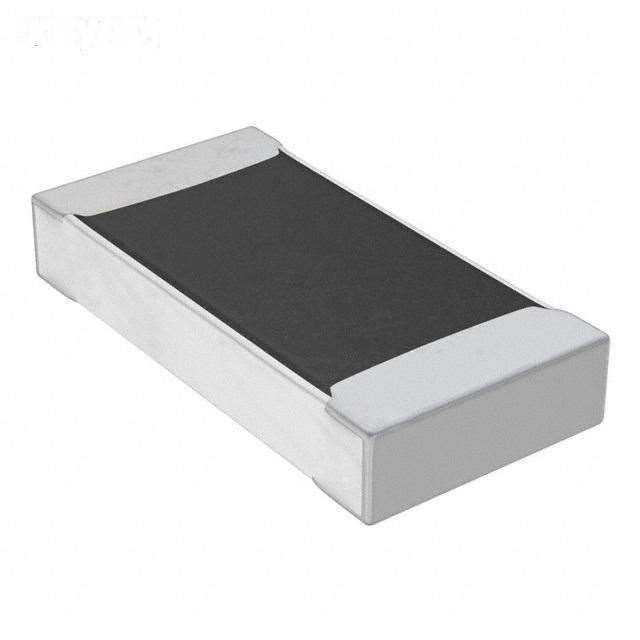

| Manufacturer Part Number: | HVCB1206FKC10M0 |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 10M OHM 1% 1/3W 1206 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HVCB1206FKC10M0 Datasheet |
| Internal Part Number | 898-HVCB1206FKC10M0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | HVC High Voltage Chip Resistor Pulse Handling Resistor Solutions | |
| RoHS Information | RoHS Compliance | |
| Featured Product | HVC Series High Voltage Chip Resistors | |
| PCN Design/Specification | HVC Series Specifications Upgrade 01/Mar/2012 | |
| PCN Packaging | HVC Series Part Marking 23/Jun/2010 | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | HVC Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | HVC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 10M | |
| Tolerance | ±1% | |
| Power (Watts) | 0.333W, 1/3W | |
| Composition | Thick Film | |
| Features | High Voltage, Pulse Withstanding | |
| Temperature Coefficient | ±50ppm/°C | |
| Operating Temperature | -55°C ~ 150°C | |
| Package / Case | 1206 (3216 Metric) | |
| Supplier Device Package | 1206 | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height | 0.030" (0.76mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HVCB1206FKC10M0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HVCB1206FKC10M0 is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of HVCB1206FKC10M0 is new and unused, you can buy HVCB1206FKC10M0 Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HVCB1206FKC10M0.
