Manufacturer Part Number: | LRF3WLF-01-R010F |
---|---|
Manufacturer: | TT Electronics/IRC |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 0.01 OHM 3W 2512 WIDE |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LRF3WLF-01-R010F Datasheet |
Internal Part Number | 898-LRF3WLF-01-R010F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Current Sense Resistor Products | |
RoHS Information | RoHS Cert of Compliance | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | TT Electronics/IRC | |

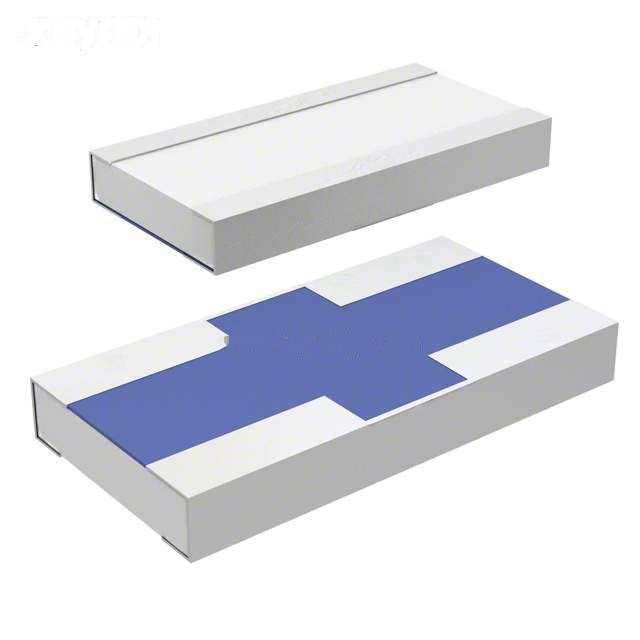

Series | LRF3W | |
Packaging | Digi-Reel® | |
Part Status | Discontinued | |
Resistance (Ohms) | 0.01 | |
Tolerance | ±1% | |
Power (Watts) | 3W | |
Composition | Thick Film | |
Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 150°C | |
Package / Case | Wide 2512 (6432 Metric), 1225 | |
Supplier Device Package | 1225 | |
Size / Dimension | 0.125" L x 0.250" W (3.18mm x 6.35mm) | |
Height | 0.035" (0.89mm) | |
Number of Terminations | 2 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LRF3WLF-01-R010F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LRF3WLF-01-R010F is in stock for immediate shipping now. We are the distributor of TT Electronics/IRC all series components. The condition of LRF3WLF-01-R010F is new and unused, you can buy LRF3WLF-01-R010F TT Electronics/IRC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LRF3WLF-01-R010F.
