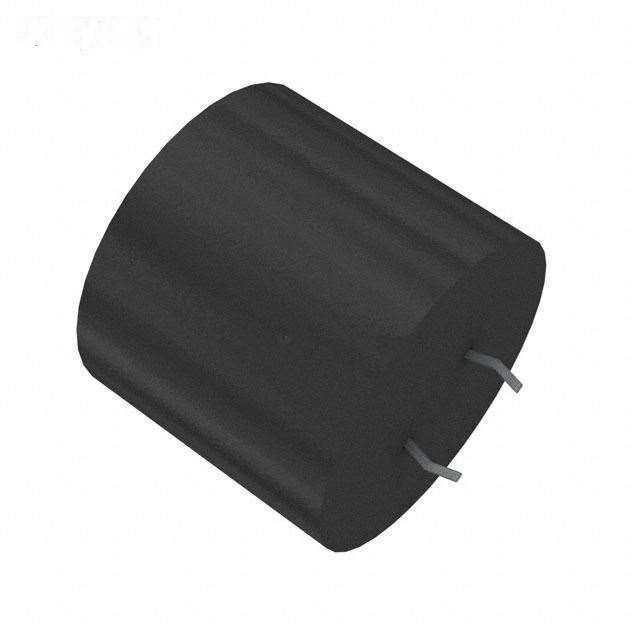

PEH534YDC3220M2

PEH534YDC3220M2
Manufacturer Part Number:PEH534YDC3220M2
Manufacturer:
Product Category:Aluminum Capacitors
Available Quantity:11347 Pieces
Unit Price:Quote by Email
Description:220µF 450V Aluminum Capacitors Radial, Can - Snap-In 390 mOhm @ 100Hz 2000 Hrs @ 105°C
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PEH534YDC3220M2 Datasheet
PEH534YDC3220M2´s Parameters
Internal Part Number898-PEH534YDC3220M2
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesCapacitor Basics- Typical Uses for Capacitors
Specifying Electrolytic Capacitors
Aluminum ELectrolytic Screw Terminal and Snap-In Capacitors
Featured ProductSnap-In Capacitors
EDA / CAD Models Download from Accelerated Designs
Online Catalog PEH 534 Series
CategoryCapacitors
FamilyAluminum Capacitors
ManufacturerKemet
SeriesPEH534
PackagingBulk
Part StatusActive
Capacitance220µF
Tolerance±20%
Voltage Rating450V
ESR (Equivalent Series Resistance)390 mOhm @ 100Hz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
ApplicationsGeneral Purpose
Ripple Current1.2A @ 100Hz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension1.378" Dia (35.00mm)
Height - Seated (Max)1.181" (30.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartPEH534YDC3220M2
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PEH534YDC3220M2 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of PEH534YDC3220M2 is new and unused, you can buy PEH534YDC3220M2 Kemet with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PEH534YDC3220M2.
