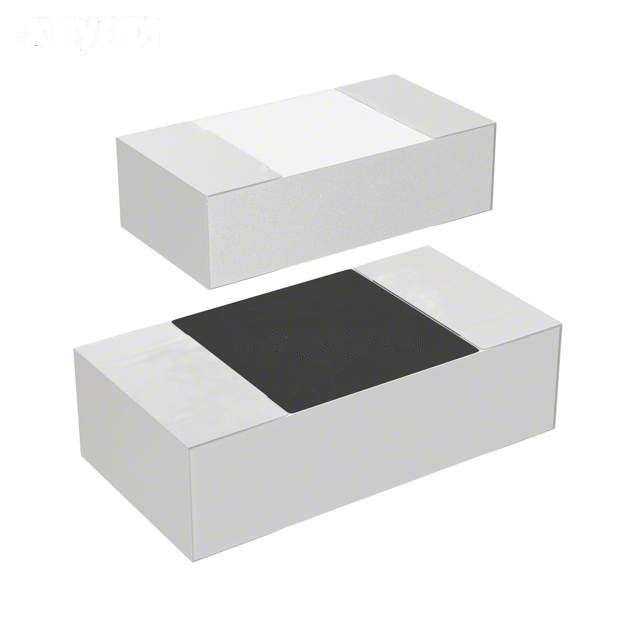

| Manufacturer Part Number: | PNM0402E5001BST1 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 27010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 5K OHM 0.1% 1/20W 0402 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PNM0402E5001BST1 Datasheet |
| Internal Part Number | 898-PNM0402E5001BST1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PNM Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Dale | |
| Series | PNM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 5k | |
| Tolerance | ±0.1% | |
| Power (Watts) | 0.05W, 1/20W | |
| Composition | Thin Film | |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive, Non-Magnetic | |
| Temperature Coefficient | ±25ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 0402 (1005 Metric) | |
| Supplier Device Package | 0402 | |
| Size / Dimension | 0.042" L x 0.022" W (1.07mm x 0.56mm) | |
| Height | 0.033" (0.84mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PNM0402E5001BST1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PNM0402E5001BST1 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of PNM0402E5001BST1 is new and unused, you can buy PNM0402E5001BST1 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PNM0402E5001BST1.
