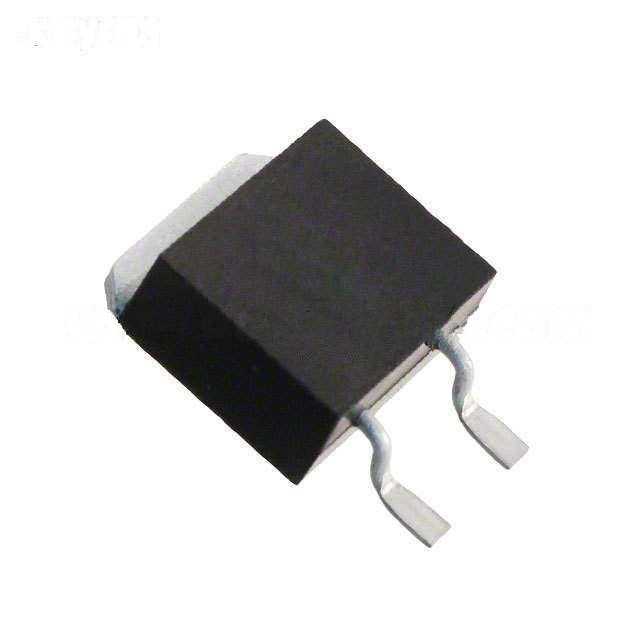

| Manufacturer Part Number: | PWR263S-35-20R0F |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 10485 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 20 OHM 1% 35W D2PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PWR263S-35-20R0F Datasheet |
| Internal Part Number | 898-PWR263S-35-20R0F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Current Sense Resistor Overview | |
| RoHS Information | PWR263S-35xxx Material Declaration | |
| 3D Model | PWR263S-35.stp | |
| PCN Design/Specification | Date Code Format Feb/2016 | |
| Online Catalog | PWR263S-35 Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Bourns Inc. | |
| Series | PWR263S-35 | |
| Packaging | Tube | |
| Part Status | Active | |
| Resistance (Ohms) | 20 | |
| Tolerance | ±1% | |
| Power (Watts) | 35W | |
| Composition | Thick Film | |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding | |
| Temperature Coefficient | ±100ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | D2PAK | |
| Size / Dimension | 0.398" L x 0.409" W (10.10mm x 10.40mm) | |
| Height | 0.192" (4.88mm) | |
| Number of Terminations | 2 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PWR263S-35-20R0F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PWR263S-35-20R0F is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PWR263S-35-20R0F is new and unused, you can buy PWR263S-35-20R0F Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWR263S-35-20R0F.
