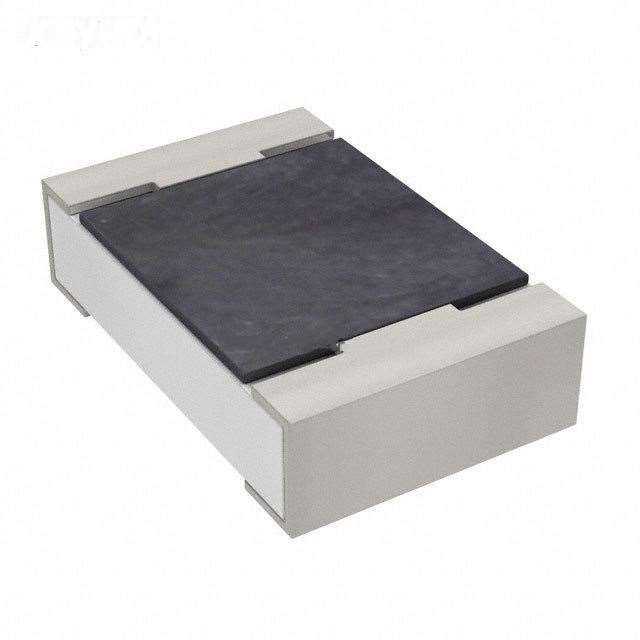

.jpg)
| Manufacturer Part Number: | RC0805FR-07100RL |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 1914010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 100 OHM 1% 1/8W 0805 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RC0805FR-07100RL Datasheet |
| Internal Part Number | 898-RC0805FR-07100RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Chip Resistor | |
| PCN Other | RC/AC 0603/0805/1206 22/Jan/2013 | |
| HTML Datasheet | RC Series, L Suffix Datasheet.html | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | RC0805 Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Yageo | |
| Series | RC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 100 | |
| Tolerance | ±1% | |
| Power (Watts) | 0.125W, 1/8W | |
| Composition | Thick Film | |
| Features | Moisture Resistant | |
| Temperature Coefficient | ±100ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 0805 (2012 Metric) | |
| Supplier Device Package | 0805 | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height | 0.024" (0.60mm) | |
| Number of Terminations | 2 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RC0805FR-07100RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RC0805FR-07100RL is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of RC0805FR-07100RL is new and unused, you can buy RC0805FR-07100RL Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RC0805FR-07100RL.
