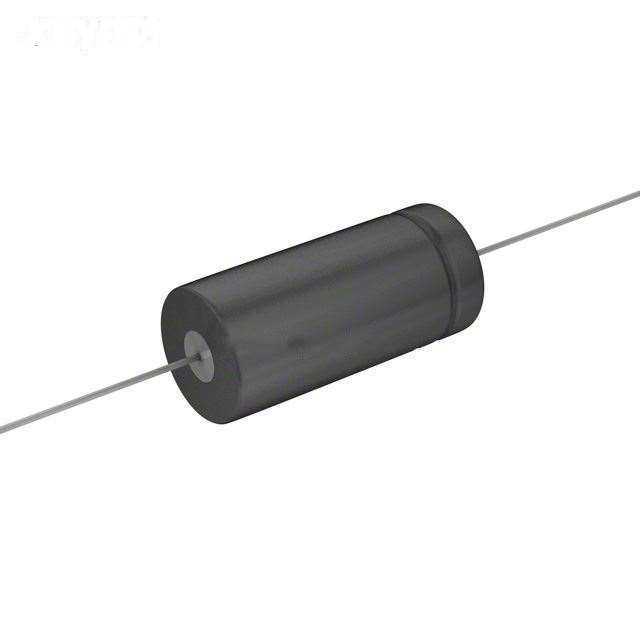

| Manufacturer Part Number: | TC1540 |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Aluminum Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4000µF 16V Aluminum Capacitors Axial, Can 80 mOhm @ 120Hz 1000 Hrs @ 85°C |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TC1540 Datasheet |
| Internal Part Number | 898-TC1540 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 23/Apr/2014 | |
| Category | Capacitors | |
| Family | Aluminum Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | TC | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Capacitance | 4000µF | |
| Tolerance | -10%, +75% | |
| Voltage Rating | 16V | |
| ESR (Equivalent Series Resistance) | 80 mOhm @ 120Hz | |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | |
| Operating Temperature | -40°C ~ 85°C | |
| Polarization | Polar | |
| Applications | General Purpose | |
| Ripple Current | 2.518A @ 120Hz | |
| Impedance | - | |
| Lead Spacing | - | |
| Size / Dimension | 0.875" Dia x 1.875" L (22.22mm x 47.63mm) | |
| Height - Seated (Max) | - | |
| Surface Mount Land Size | - | |
| Mounting Type | Through Hole | |
| Package / Case | Axial, Can | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TC1540 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TC1540 is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of TC1540 is new and unused, you can buy TC1540 Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC1540.
