Manufacturer Part Number: | VCR60W392KGS |
---|---|
Manufacturer: | Kemet |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9022 Pieces |
Unit Price: | Quote by Email |

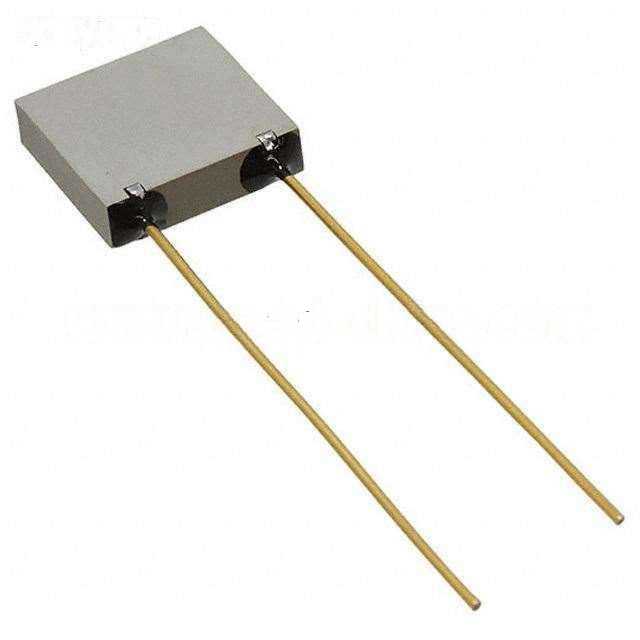

Description: | 3900pF 4000V (4kV) Ceramic Capacitor C0G, NP0 Radial 0.550" L x 0.375" W (13.97mm x 9.52mm) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | VCR60W392KGS Datasheet |
Internal Part Number | 898-VCR60W392KGS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Axial and Radial Leaded Multilayer Ceramic Capacitors | |
PCN Design/Specification | yCR,yRR,yCA,yRA Series 23/Jun/2014 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | VCR and VRR Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | Kemet | |
Series | VCR | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 3900pF | |
Tolerance | ±10% | |
Voltage - Rated | 4000V (4kV) | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 200°C | |
Applications | General Purpose | |
Ratings | - | |
Package / Case | Radial | |
Size / Dimension | 0.550" L x 0.375" W (13.97mm x 9.52mm) | |
Height - Seated (Max) | 0.600" (15.24mm) | |
Thickness (Max) | - | |
Lead Spacing | 0.400" (10.16mm) | |
Features | High Voltage, High Temperature | |
Lead Style | Straight | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | VCR60W392KGS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
VCR60W392KGS is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of VCR60W392KGS is new and unused, you can buy VCR60W392KGS Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VCR60W392KGS.
