| Manufacturer Part Number: | YNA18B3U0G105MT000N |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 16775 Pieces |
| Unit Price: | Quote by Email |

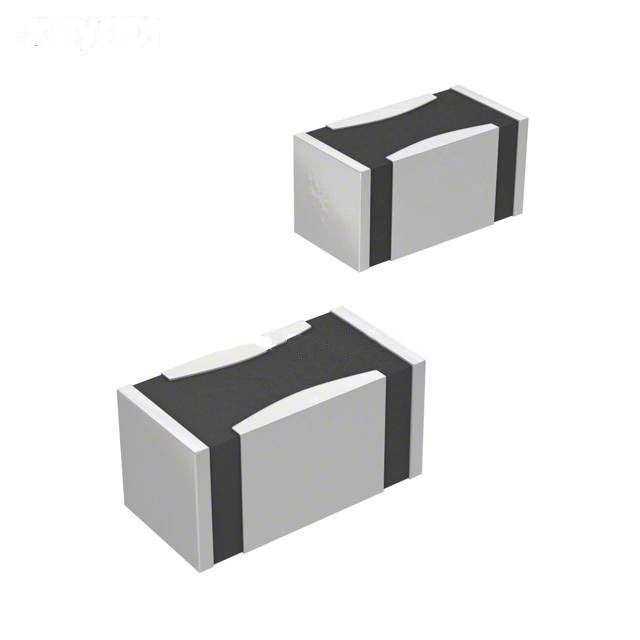

| Description: | 1µF 4V Ceramic Capacitor X5R 0603 (1608 Metric) 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | YNA18B3U0G105MT000N Datasheet |
| Internal Part Number | 898-YNA18B3U0G105MT000N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Capacitance Replacement Controlled ESR Capacitors C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| Featured Product | CER Series Controlled ESR MLCCs | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 Noise Absorber Jul/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CERB and CERD Series | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | YNA | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Capacitance | 1µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 4V | |
| Temperature Coefficient | X5R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 85°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.035" (0.90mm) | |
| Lead Spacing | - | |
| Features | Controlled ESR | |
| Lead Style | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | YNA18B3U0G105MT000N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
YNA18B3U0G105MT000N is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of YNA18B3U0G105MT000N is new and unused, you can buy YNA18B3U0G105MT000N TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for YNA18B3U0G105MT000N.
